Everything You Need to Know About Duct Hatches in HVAC Systems

Duct hatches play a crucial role in modern HVAC and ventilation systems, providing easy access for maintenance, inspection, and cleaning. For building managers, contractors, and HVAC professionals, understanding duct hatches ensures operational efficiency, compliance with safety standards, and long-term system performance.

Whether you are upgrading an existing system or planning a new installation, this article equips you with practical knowledge, helping you choose the right solutions from trusted ventilation duct manufacturers.

What is a Duct Hatch?

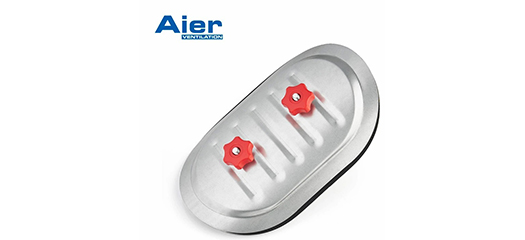

A duct hatch is a specially designed access point in an HVAC duct or ventilation system that allows technicians to inspect, maintain, and clean the system efficiently. While similar to a panel door, a duct hatch is typically more durable, airtight, and suitable for repeated use in demanding environments.

Key Features of a Duct Hatch:

• Durable Construction: Usually made from galvanized steel, aluminum, or stainless steel to resist corrosion and pressure.

• Air-Tight Sealing: Equipped with gaskets or sealing strips to prevent air leakage.

• Ease of Access: Hinged or removable panels allow quick and safe entry.

• Compliance: Designed to meet fire, safety, and building regulations.

Access panel doors are essential for minimizing downtime in HVAC maintenance. Modern ventilation duct manufacturers provide duct hatches in standardized sizes and designs, ensuring that maintenance tasks are performed quickly without compromising airflow or energy efficiency.

By incorporating these access points, building owners and contractors can ensure safety, system longevity, and operational efficiency.

Duct Hatch Installation

Installing a duct hatch properly is crucial for maintaining airflow, energy efficiency, and system reliability. Below is a step-by-step guide:

Step 1: Select the Right Hatch

Choose a duct hatch that matches the duct size and type. Consider future maintenance access and compliance with building codes.

Step 2: Identify the Installation Location

Select a location that is safe, accessible, and convenient for maintenance personnel. Avoid obstructing airflow or placing hatches in areas with high structural limitations.

Step 3: Prepare the Duct

Measure and mark the opening accurately. Cut the duct with precision to prevent structural weakening. Rectangular ducts require square openings, while round ducts may require circular hatches.

Step 4: Secure the Hatch

Attach the hatch using screws, rivets, or welding, depending on the duct material. Ensure hinges and latches are properly aligned.

Step 5: Seal the Edges

Apply gaskets or sealant around the hatch edges to prevent air leakage. Proper sealing maintains energy efficiency and system integrity.

Step 6: Test Functionality

Ensure the hatch opens and closes smoothly, and the latch securely holds the panel. Conduct airflow tests if necessary to confirm efficiency.

Proper installation of duct hatches minimizes air leakage, reduces maintenance time, and ensures compliance with HVAC standards recommended by ventilation duct manufacturers.

Duct Hatch Requirements

For safety, accessibility, and optimal performance, duct hatches must meet several requirements:

• Size and Accessibility: The opening should allow technicians to enter for inspection and cleaning.

• Material Strength: Made from durable, corrosion-resistant materials like steel or aluminum.

• Fire Safety Compliance: Must meet local fire-rating requirements if installed in fire-rated ducts.

• Air-Tightness: Gaskets and seals prevent energy loss.

• Strategic Placement: Install in easily reachable locations without disrupting airflow.

Adhering to these requirements ensures both regulatory compliance and long-term functionality. HVAC contractors often consult with ventilation duct manufacturers to source pre-fabricated access panel doors that meet these standards, reducing installation errors and improving efficiency.

Types of Ducts and Panels

Understanding the types of ducts helps in selecting the right duct hatch.

Three Common Types of Ducts:

1. Rectangular Ducts: Most common in commercial buildings; hatches are easy to install on flat surfaces.

2. Round Ducts: Often found in residential systems; require circular hatches for proper access.

3. Flexible Ducts: Typically limited in access; inspection ports or panel doors are used instead of full hatches.

Difference Between a Duct Hatch and a Panel:

 FAQs

Q1: Where are access doors required?
A: Access doors are required at points where maintenance, cleaning, or inspection is necessary. These include long duct runs, junctions, elbows, and near HVAC equipment connections.

Q2: What are the three types of ducts?
A: The three common types of ducts are rectangular, round, and flexible. Each type requires specific access solutions, from full duct hatches to inspection panels.

Q3: What is the difference between a duct hatch and a panel?
A: A duct hatch provides full access for maintenance and cleaning, is airtight, and often fire-rated. A panel door is smaller, mainly for inspection, and may not provide full access.

Conclusion

Duct hatches are vital for maintaining HVAC system performance. Correct selection, installation, and compliance with requirements enhance energy efficiency, safety, and longevity.

By understanding the different duct types, installation steps, and regulations, building managers, contractors, and maintenance teams can ensure smooth HVAC operations. Partnering with trusted ventilation duct manufacturers guarantees high-quality access doors that are reliable, durable, and compliant with industry standards.

Implementing the right duct hatches reduces maintenance time, prevents energy loss, and supports a safer, more efficient ventilation system. With this guide, you now have the knowledge to select, install, and maintain duct hatches for optimal system performance.
