Specification:

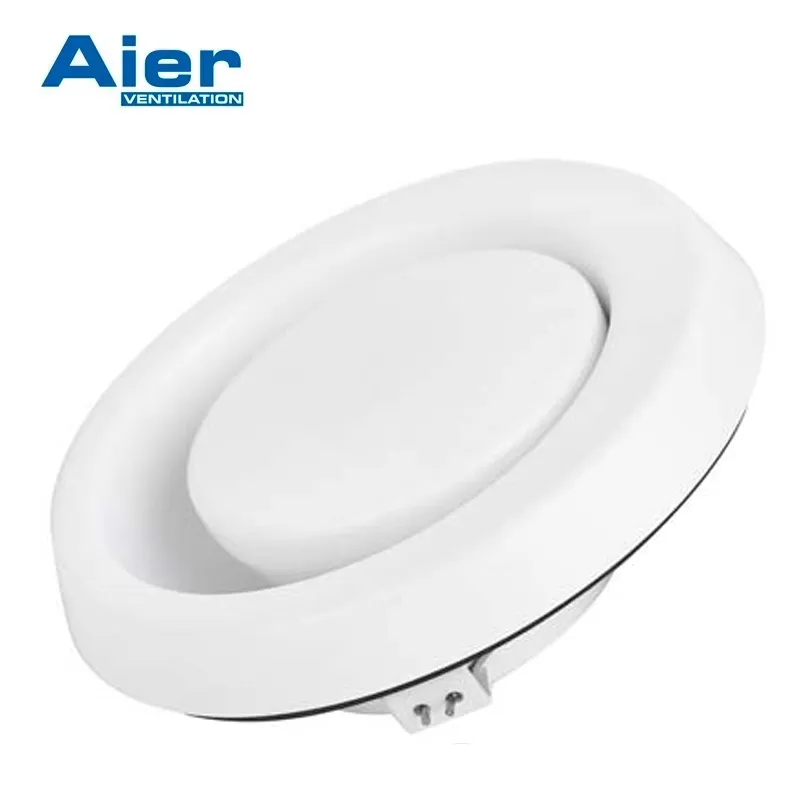

Item code: AVB
Material: valve body made of galvanizeds teel,
Finish: powder coating with RAL9010, RAL9016, RAL9003 or as per customer request.
The air flow is adjusted by adjusting the screw on the side of the valve body

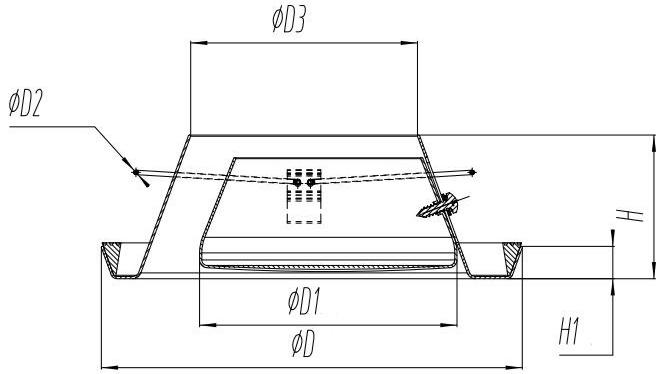

| Item code | ØD(mm) | ØD1(mm) | ØD2(mm) | ØD3(mm) | H(mm) | H1(mm) |
| AVB 100 | 130.5 | 76 | 1.5 | 62 | 43.5 | 15.2 |
| AVB 125 | 155 | 86.5 | 1.8 | 76.6 | 56 | 16 |
| AVB 160 | 189 | 115.6 | 2.0 | 102 | 64.5 | 14.5 |
