Specification:

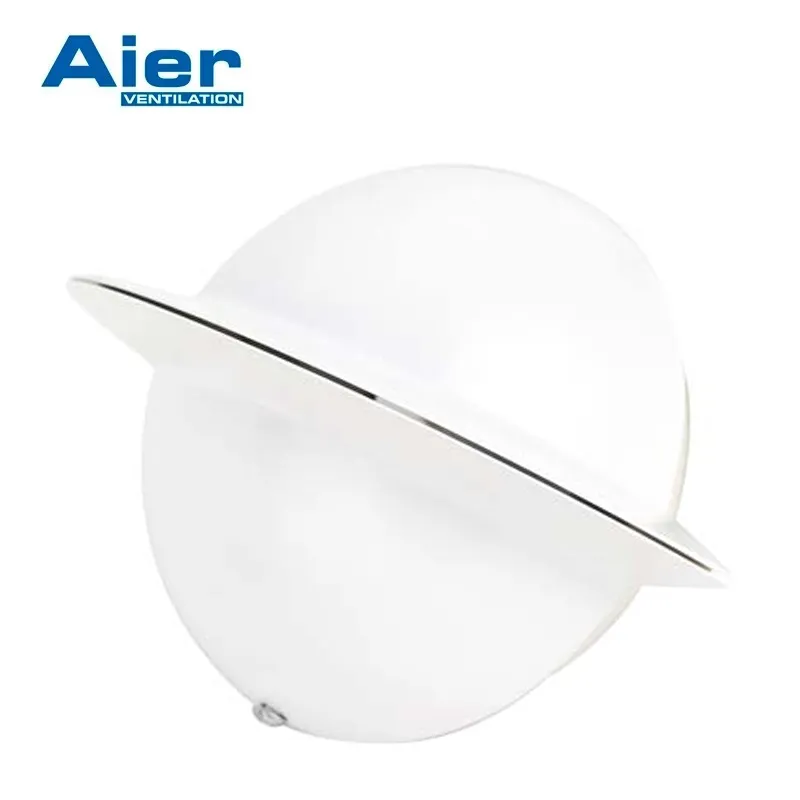

Item code:AVTK -Material: valve body made of galvanized steel,
Finish: powder coating with RAL9010, RAL9016, RAL9003 or as per customer request.
The air flow is adjusted by adjusting the screw on the side of the valve body
The only difference between size 100 and 125 is the spring

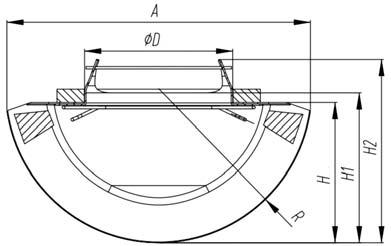

| Item code | A(mm) | ØD(mm) | H(mm) | H1(mm) | H2(mm) | R(mm) |
| AVTK 100-125 | 183.6 | 89.6 | 84.4 | 90.1 | 110.3 | 92.8 |
